Rear rack ebike battery

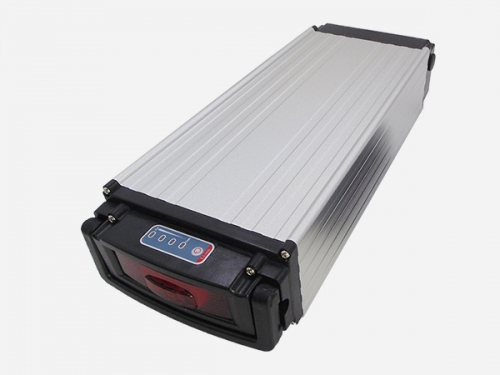

Rear Rack E-bike Battery Pack DTB106

DTB106 rear hanger electric bicycle battery, can provide black and silver two colors, the installation is very convenient, large capacity, large discharge current for large-capacity high-power electric bicycle battery, from 250w to 1500w power.

  • Reference Models
    Model V Capacity Size about Standard
    Charge
    Continuous
    Discharge
    Power
    DTB106R2420 24v 20ah 80*150*360mm 3A 20A 120-400w
    DTB106R2430 24v 30ah 80*150*360mm 4A 30A 120-700w
    DTB106R2440 24v 40ah 80*150*360mm 6A 40A 120-900w
    DTB106R2450 24v 50ah 80*150*360mm 8A 50A 120-1000w
    DTB106R3615 36v 15ah 80*150*360mm 3A 20A 200-500w
    DTB106R3620 36v 20ah 80*150*360mm 4A 30A 200-750w
    DTB106R3630 36v 30ah 80*150*360mm 5A 40A 200-900w
    DTB106R3635 36v 35ah 80*150*360mm 5A 40A 200-1000w
    DTB106R4815 48v 15ah 80*150*360mm 3A 20A 250-750w
    DTB106R4820 48v 20ah 80*150*360mm 4A 30A 250-1000w
    DTB106R4825 48v 25ah 80*150*360mm 5A 40A 250-1500w
    DTB106R4828 48v 28ah 80*150*360mm 5A 40A 250-1500w
    DTB106R5215 52v 15ah 80*150*360mm 3A 20A 250-750w
    DTB106R5220 52v 20ah 80*150*360mm 4A 30A 250-1000w
    DTB106R5225 52v 25ah 80*150*360mm 5A 40A 250-1500w
    Other capacity can be customized
  • *

    *

    *

    *
